Uncoilers

Capacity: 2500 Kg - Max width: 300 mm - safety disc brake

Model	Coil Weight (kg)	Width (mm)
2352	2x1250	300 to 550

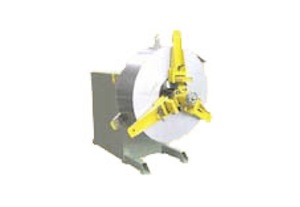

2370	2500	300 to 550
2380	4000	500 to 1300

2 x 6000 Kg with pneumatic upper - pressure arm and coil car

Model	Coil Weight (kg)	Width (mm)
2352	2 x 1250	300 to 550
2372	2 x 2500	300 to 550
2382	2 x 4000	550 to 1300

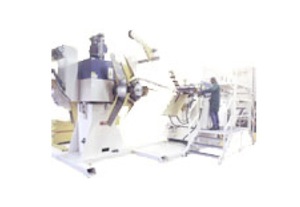

2384	2 x 6500	500 to 1300

DUAL UNCOILER = DOUBLE PRODUCTIVITY
The Dual uncoiler reduces waste in production times as the new coil is loaded onto the free mandrel while the other one is in operation.

Maximum load: 11 tons - traversing base mounted on ground - cylindrical shafted (TSC) - Coil lift (VHC) - Pneumatic pressure arm (BP 59)

Model	Coil Weight (kg)	Width (mm)
2384	5000	800 to 1300
2386	8000	800to 1300

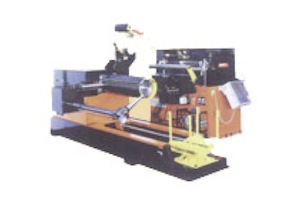

2390	12500	800 to 1500
2395	15000	1300 to 1500
2398	20000	1000 to 1800
